DESCRIPTION

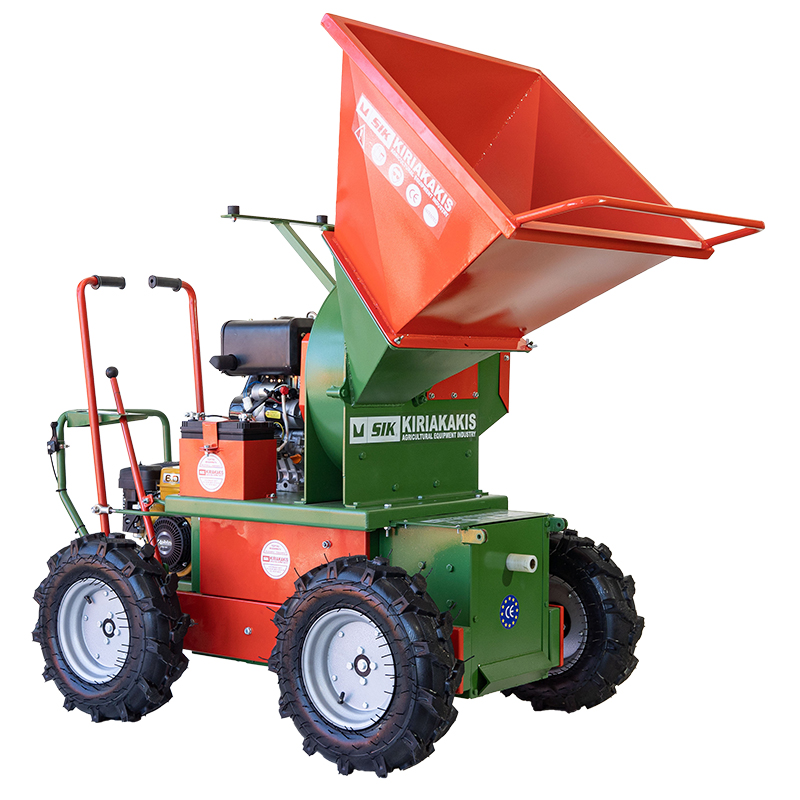

The specially designed four-wheel-drive transport trolley is the most reliable solution for the easy, fast and safe transport of harvested products, fertilizers, construction materials and many others on any type of terrain, flat or inclined, with soft or hard soil. With the addition of a 12V-28V / 70A generator and the holder for 4 sticks it may be used as a rake harvester or even as a spraying machine with the adjustment of a spray pump.
The manual tipping of the trolley is available with the machine’s fixed equipment. Mechanical or hydraulic tipping is available with extra charge upon request.
By simply removing the trolley, a wood chipper is installed with a patented flywheel system that wears a 10Hp Diesel engine, very strong and efficient with great fuel economy. The wood chipper has three high quality double-edged knives, with the ability to crush soft and dry-hard branches with equal ease.
TECHNICAL SPECIFICATIONS OF SELF-PROPELLED TRANSPORT TROLLEY
Engine:
Gasoline: ROBIN EX 17 6HP / Honda GX 160 5,5 HP
Ignition:
Hand crank
Wagon dimensions:
1,10m x 0,75m
Wagon:
Tipping
Machine dimensions:
1,63m x 1,00m x 1,10m
Weight:
150kg
TECHNICAL SPECIFICATIONS OF THE WOOD CHIPPER
Engine:
15 HP 575 cc diesel engine
Ignition:
Starter and battery
Feeder dimensions:
65x80cm
Cutting blades:
3 double sided
Maximum cutting diameter:
100mm
Machine dimensions:
1,40m x 0,90m x 1,45m
Weight:
100kg
